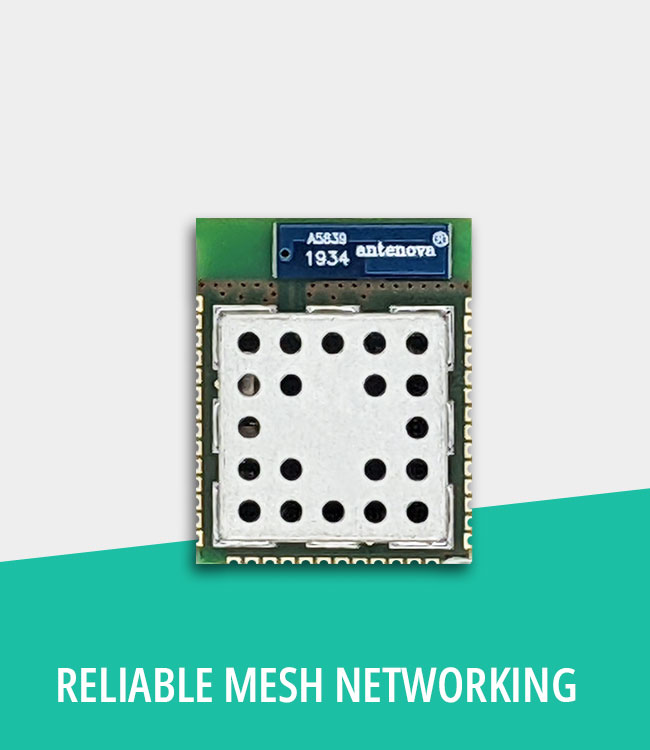

RM-MS1 SmartMesh IP module

Reliable Wireless Mesh Networking

The RM-MS1 is a 2.4 GHz radio module targeted for applications where proven reliability, highly flexible network and low-power performance are key requirements.

The RM-MS1 module is based on an Analog Devices LTC®5800-IPM System-on-Chip (SoC), featuring an IEEE 802.15.4e low-power transceiver and an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP™ networking software stack. SmartMesh IP™ wireless sensor networks are self-managing, low power internet protocol (IP) networks built from wireless nodes.


Key Features

  • 2.4 GHz IEEE 802.15.4e System-on-Chip (SoC)
  • Compliant to 6LoWPAN Internet Protocol (IP)
  • Integrated or SMD antenna
  • TX power: up to +8 dBm
  • RX sensitivity: down to -93 dBm
  • Range: up to 100 meters LoS
  • MCU: 32-bit ARM® Cortex®-M3 core, 512 kB Flash, 72 kB RAM
  • Micrium μCOS-II Real Time Operating System
  • Supply Voltage: 2.1 V to 3.76 V single power supply
  • Operating Temperature Range: –40°C to 85°C
  • Dimensions: 20.0 x 25.0 x 5.0 mm

Main Applications

  • Smart Factory
  • Industry 4.0
  • Smart Agricolture
  • Smart Buildings
  • Structural Monitoring

Technical Documents

RM-MS1 Datasheet – ver. 1.0
