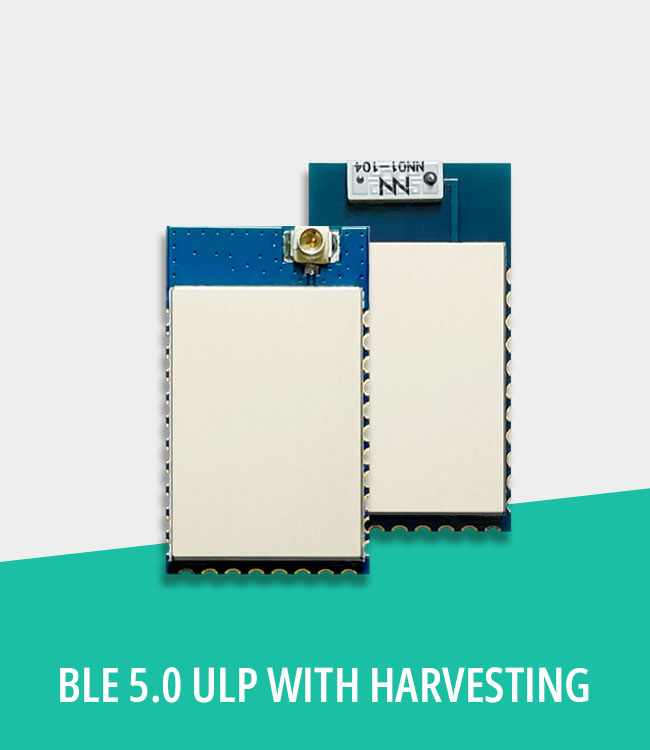

Ultra-Low Power BLE Module with Energy Harvesting for Battery Maintenance-Free IoT Devices

The RM-BE1 is a Bluetooth® 5.0 Low-Energy module fully compliant with 2Mbit High-Throughput (HT) and Long Range extensions.

RM-BE1 is based on Renesas energy-efficient RE01B wireless MCU, featuring an Arm® Cortex®-M0+ core. Developed using Renesas’ breakthrough SOTB™ (Silicon on Thin Buried Oxide) process technology, the new Bluetooth-capable RE01B MCU is ideal for energy harvesting systems and intelligent IoT devices that need to operate constantly at extremely low power levels without the need to replace or recharge batteries. Leveraing on the RE01B MCU, RM-BE1 module is capable of ultra-low current consumption in both active and standby mode and high speed CPU operation (64MHz) at low voltage (1.62V).

Applications include compact healthcare devices such as pulse oximeters and biomedical sensor patches, remote controls with voice recognition capabilities and smart meter modules. In addition, the RE01B is well suited for IoT devices that require constant operation, period data collection and updates, such as devices for monitoring the elderly, children or assets in transit.

– Available Q2 2021 –

Key Features

  • Support for Bluetooth 5.0 Long Range (up to 400 m) and high data throughput (2 Mbps)
  • MCU: 32-bit ARM® Cortex®-M0+ core with maximum operating frequency of 64 MHz
  • Ultra-low current consumption of 35 µA/MHz during operation and 600 nA (core: 500 nA, Bluetooth: 100 nA) during standby
  • Superior peak current of 3.0 mA (1Mbps) during Bluetooth reception and 4.3 mA during transmission (0 dBm, 1Mbps)
  • 1.5 MB flash memory and 256 KB SRAM with Bluetooth functionality, suitable for over-the-air (OTA) firmware updating
  • On-chip energy harvesting control circuit for battery-less Bluetooth communication
  • Robust security functions using Trusted Secure IP
  • Supply Voltage: +1.62 V to +3.6 V
  • Operating Temperature Range: -40 °C to +85 °C
  • Dimensions: 27.5 x 15.0 x 2.6 mm

Main Applications

  • Battery-less Bluetooth Sensors
  • Smart Home
  • Smart Metering
  • Smart City
  • Smart Management Systems
  • Industrial Monitoring and Control
  • Smart Parking
  • Asset Tracking Devices
