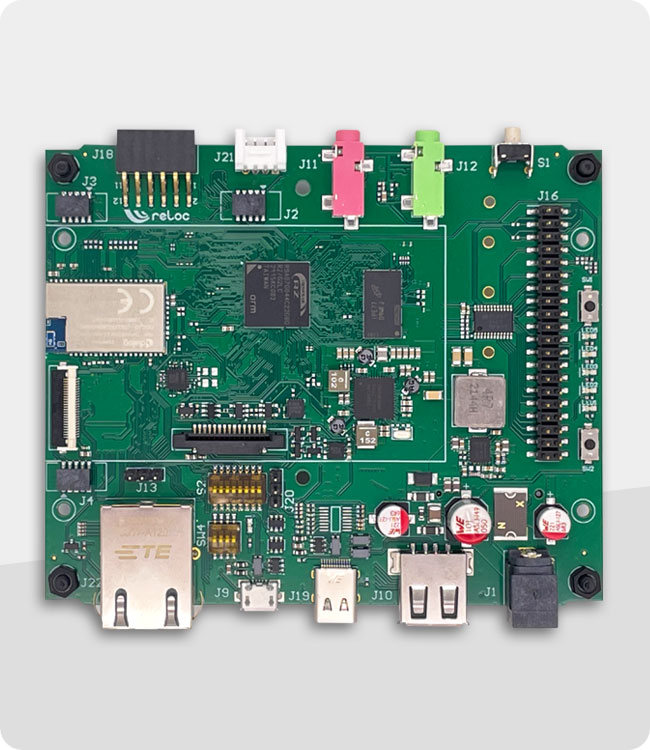

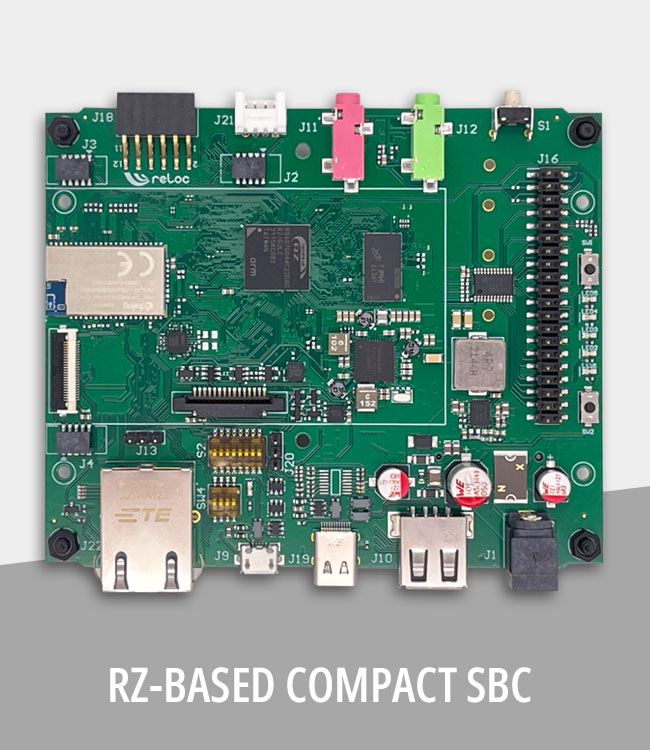

Powerful And Compact Single Board Computer (SBC)

RB-RZLC and RB-RZUL are compact Single Board Computers (SBCs) based on Renesas RZ/G2LC and RZ/G2UL platforms. RB-RZLC and RB-RZUL feature dual-core Cortex-A55@1.2GHz MPU and single core Cortex-A55@1.0GHz MPUs, respectively, plus a single Cortex-M33@200MHz MCU.
The boards include complete wireless connectivity (Wi-Fi and Bluetooth) and on-board audio codec.

RB-RZLC and RB-RZUL are targeted for applications where proven reliability, highly flexible networking and high-energy efficiency are key requirements. RB-RZxx SBCs are the ideal starting point for building gateways, edge AI solutions, industrial and home automation systems, IoT applications, etc.

Key Features

  • CPU: Cortex-A55@1.2GHz + Cortex-M33
  • Memory and Storage: DDR4 SDRAM, eMMC, QSPI Flash and uSD
  • Video In: MIPI CSI-2
  • Interfaces: Gbit Ethernet, 2x USB 2.0, others
  • Wi-Fi Connectivity
  • Bluetooth 5.1 Connectivity
  • Ultra-low power audio codec
  • Small form-factor
  • Single 12V / 24V power supply
  • Operating Temperature Range: -40 °C to +85 °C

Main Applications

  • Gateway
  • Smart Metering
  • Smart Camera
  • Audio Networking
  • Smart Management Systems
  • Industrial Monitoring and Control

Technical Documents

SKU: DVK-RB-RZLC-1 Category: Tags: , , ,
